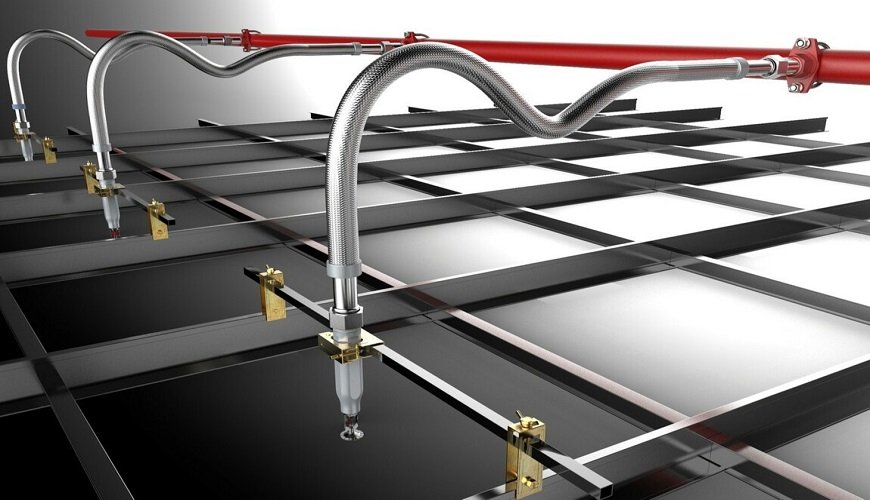

The fire sprinkler systems are intended to either control or to extinguish the fire by discharging water when the effects of a fire have been detected. Sprinkler connection hose is used for connection of sprinkler to the fire line. The advantages of this system are quick and easy installation, minimum installation cost, durable , resistance to high pressure and temperature . the sprinkler system is generally used in public places like hotels, shopping centres, factories, trade centres.
Types :
» Hose / Flexible Tubes in various thickness ( standard or heavy ) & pitch (standard,
wide, close) as per customer requirement and are supplied in long lengths on
reels.
» Braided & Unbraided duly Tig welded with End Connections as per customer
requirement
Materials :
Hose : AISI 304/ 321 / 316L Stainless Steel
Fitting : carbon Steel (St 37) / Stainless Steel (AISI 303)
Braid : AISI 304 Stainless Steel
Max. Working Pressure :
» 60 bar
Temperature :
» 190 °C + 650 °C
Min. Bending Radius :
» 180 mm
