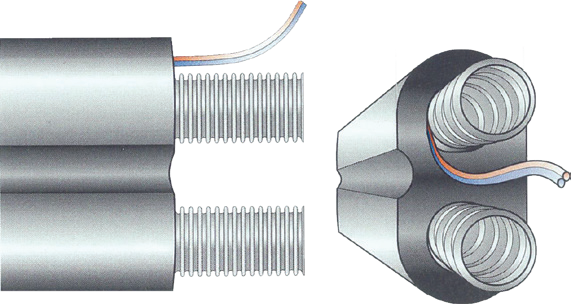

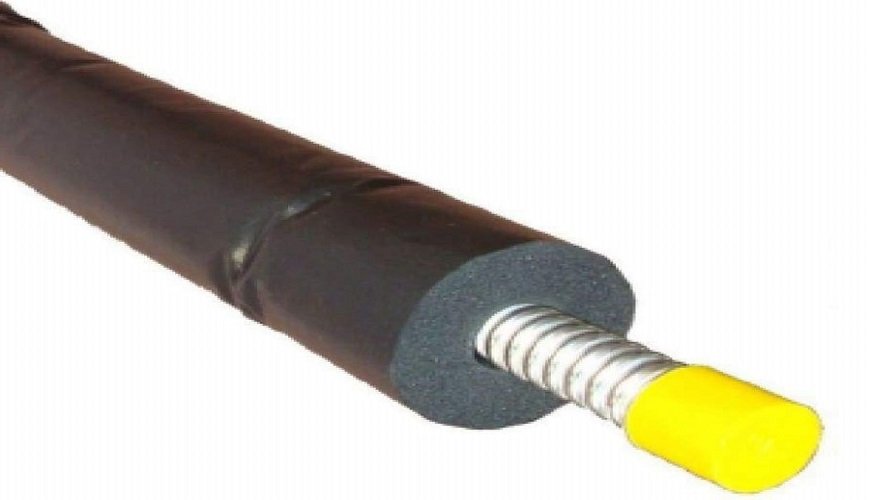

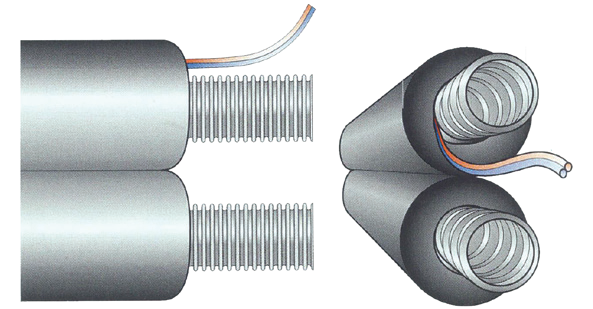

Insulated solar hoses are resistant to high temperature due to EPDM insulation pipe. And extra braiding over the insulation pipe ensure excellent UV resistance, water proof and bird attack protection. Insulated solar hose is used in quick installation systems to connect solar collector to the storage tank. You save time and money by using this system .

EPDM Insulation Pipe :
» High quality synthetic elastomeric (EPDM) based with a complete closed all structure
» Excellent UV resistance » CFC and PVC free
» Up to 175 degree C operating
» Self extinguishing » Thickness: 13 mm

Stainless steel Corrugated Hose :
» Hose material: AISI 316L /AISI 304LStainless Steel
» Hose Diameter: DN16- DN 20- DN 25
» Fitting Material: Brass

Temperature sensor wire :
» Wire : Copper
» Insulation : Silicon Rubber
» Temperature : +200 °C

Outer Cover :
» UV resistant monofilament yarn braiding
