Product Description

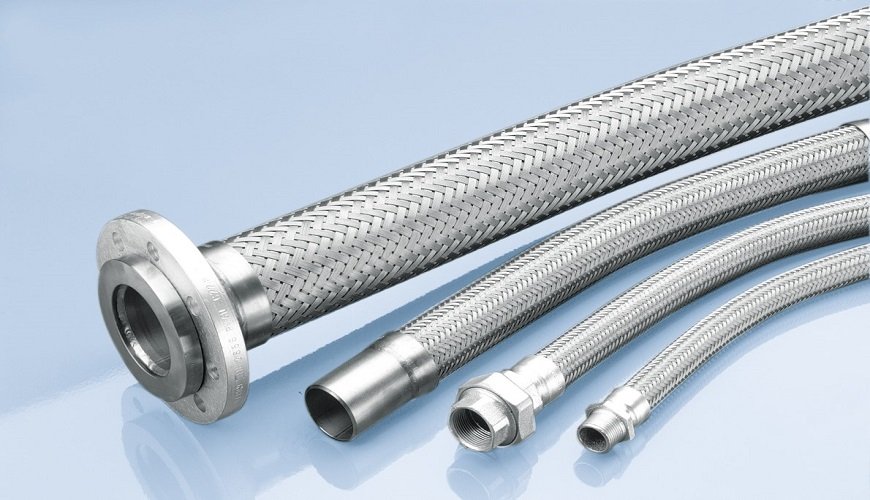

SFT Metal Hose Assemblies Comprises of : S.S . Flexible Corrugated Hose. Over Braid-Single/ double /triple braid. End Fitting - as per various standards such as DIN, AISI & BS or as customer requirements. Steel (flexible) or Asbestos / Glass Fibre cover used for very special applications. Inside / outside liner, used for better flow and extra protection. Size range ¼ “ to 12” and above.

Analyzing an application : Certain specific factors are to be considered for proper design of metal hose assembly in a particular application to ensure optimum field performance. Size/Hose & Fittings - Size of existing piping and mating fittings | Flow requirements. Temperature - Maximum service temperature of the application | Maximum allowable service temperature rating for hose and fitting alloys | Reduced operating pressures at elevated temperatures. Alloy/hose & Fittings - Corrosion resistance of hose and fittings alloys for the media conveyed | Maximum service temperature and pressure for the alloy selected. Motion & Application - Type of motion-angular, axial, offset, radial, random, vibration, amount and frequency | Hose type best suited for application and motion, including external durability requirements | Cycle life requirement. Pressure - Burst, test and operating pressure | Constant, pulsating or shock pressures | Operating pressure at elevated temperature | Braid selection to maximize pressure/minimize cost. End Fitting Attachment - Methods of attachment applicable to type and alloy of hose and fittings | Maximum temperature for alloys and methods of attachment. Developed Assembly Length - Minimum hose live length for type of motion | Hose assembly length with fittings (overalllength).

End Fittings : These are the means by which the custom designed assembly is attached to the point of application - the pipe work system. The End Fittings are attached to the SS Hose Assembly through highly advanced technique of TIG Welding process. Various designs of end fittings manufactured from C.I / Steel / Brass / Stainless Steel, Suitable for diverse applications as per various standard such as DIN, AISI & BS are available. The In-house facilities of SFT is equipped with latest CNC Machines, Lathe Machine, Capstan Machine and other necessary machines to manufacture any kind of end fittings perfectly as per required standard and dimensions in any number of quantity to deliver the Hose Assemblies on time. SFT also keeps thousands of standard end fittings ready in stock so as to deliver the standard hose assemblies before the delivery schedule. braids for specific diameters meeting the high standards of quality.
